The Dio 125 Repsol Edition, with its sporty looks and powerful performance was made to race against convention. While your eyes are on the track, all eyes will be on you as they witness the driving force of this dynamic machine.

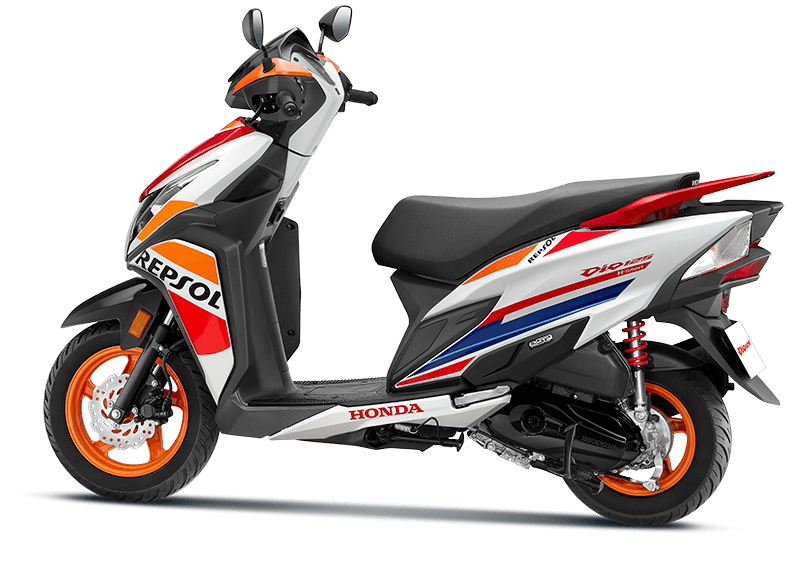

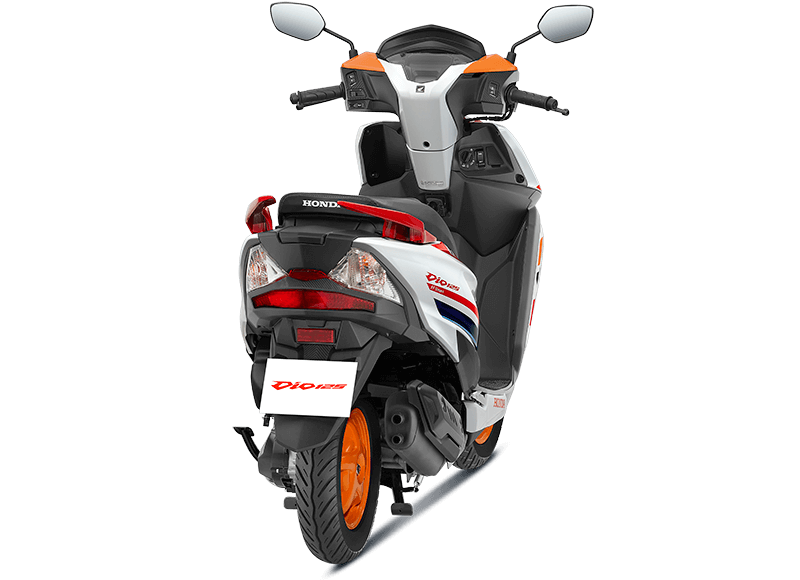

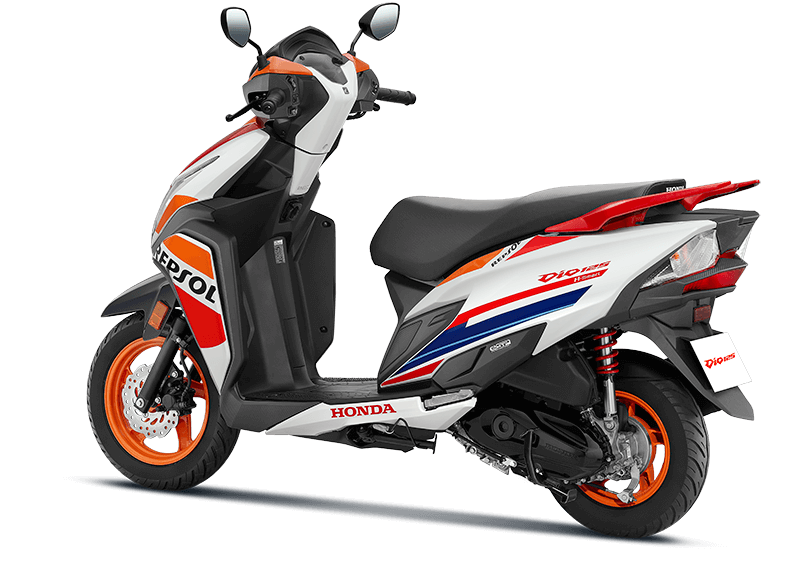

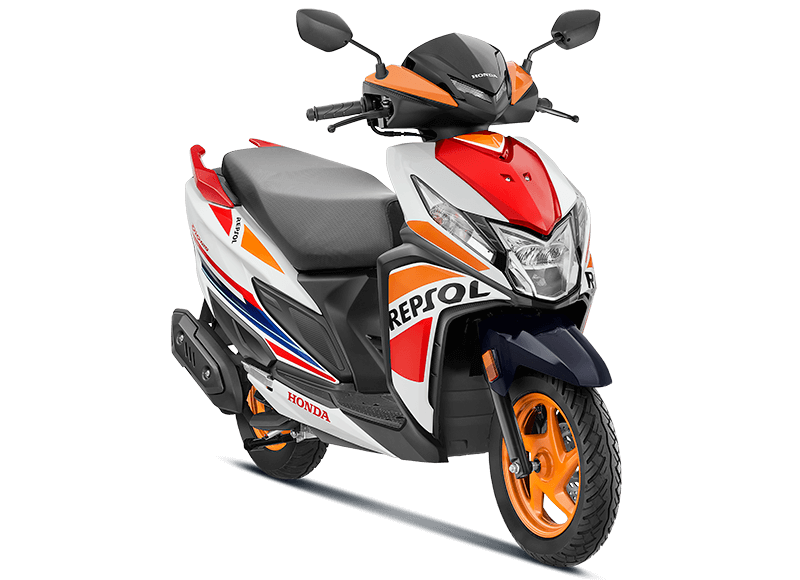

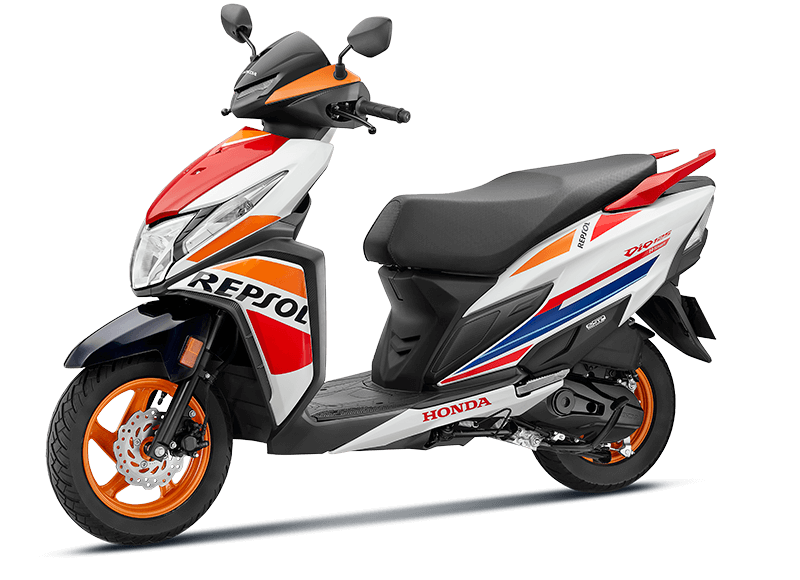

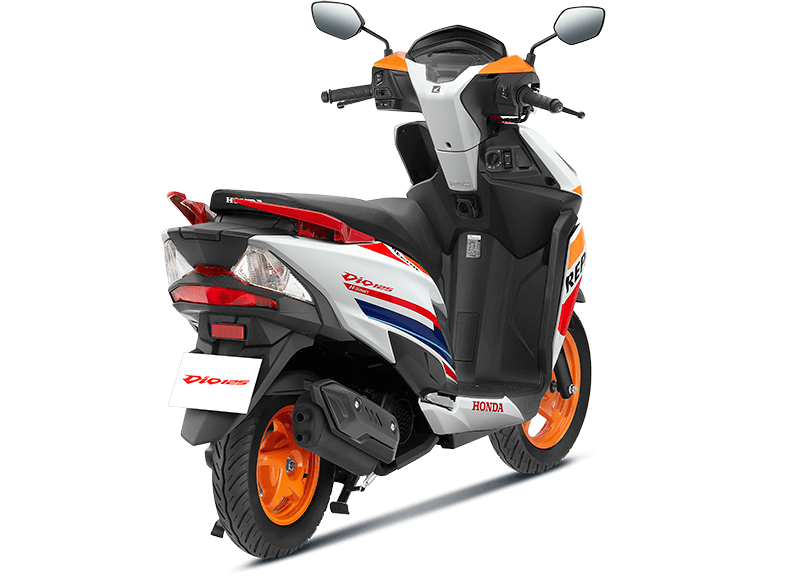

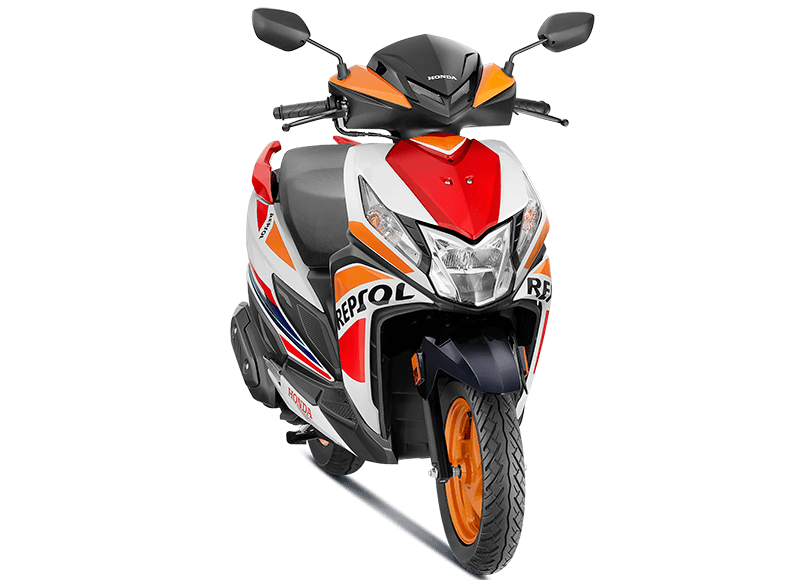

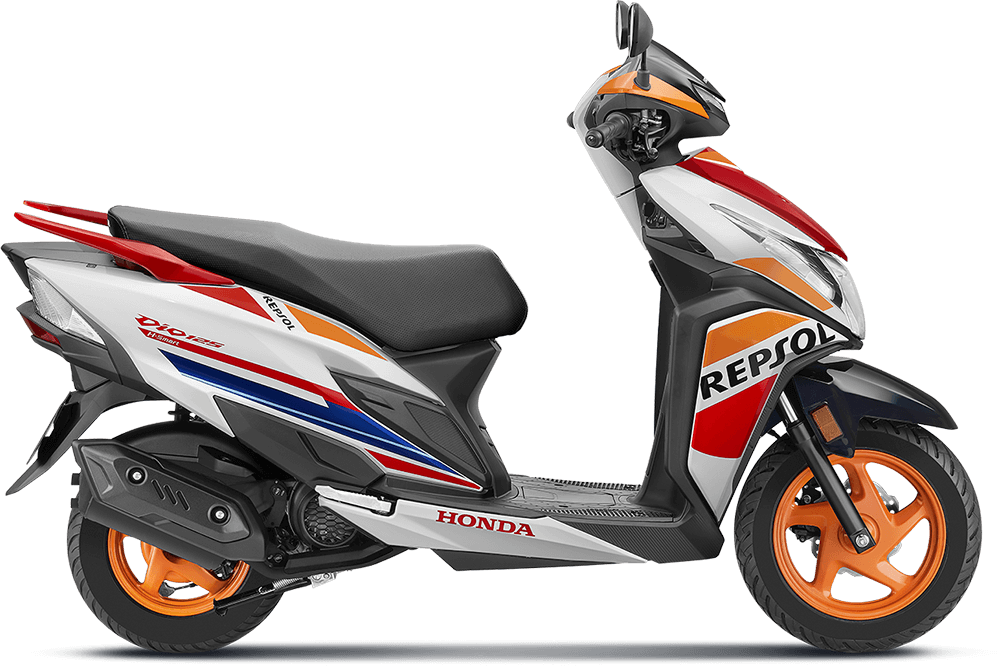

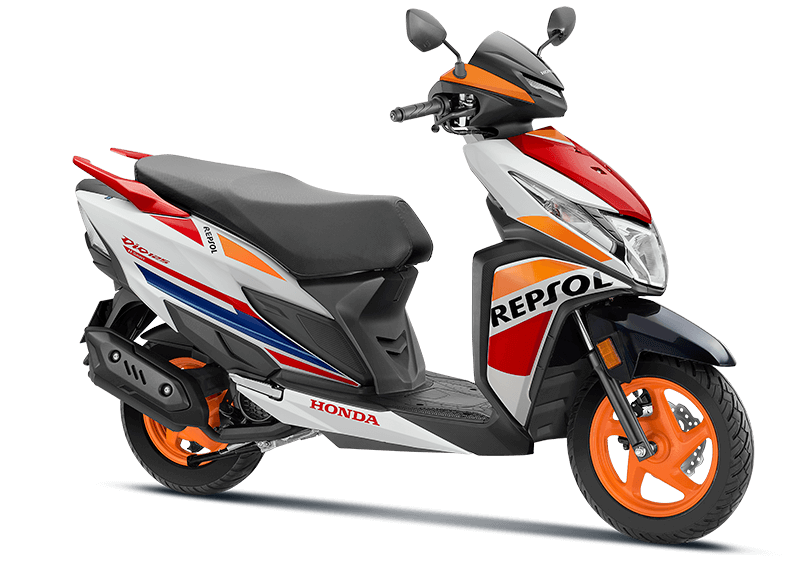

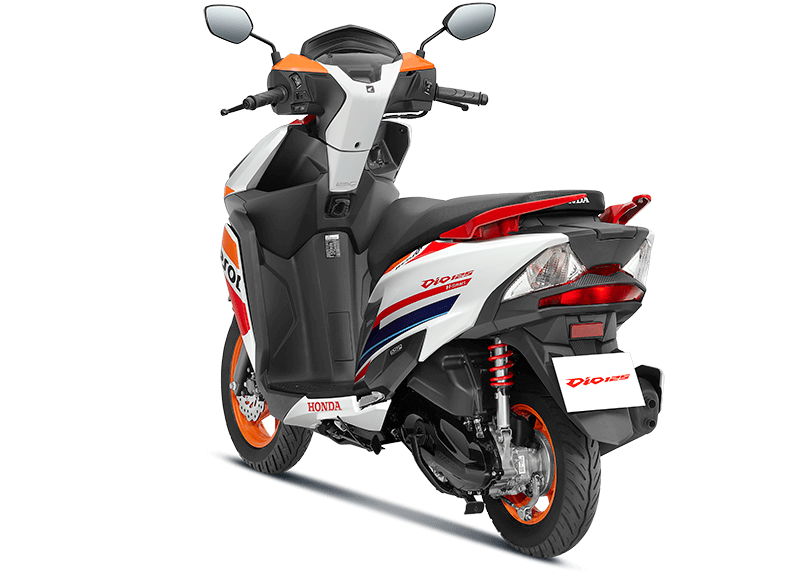

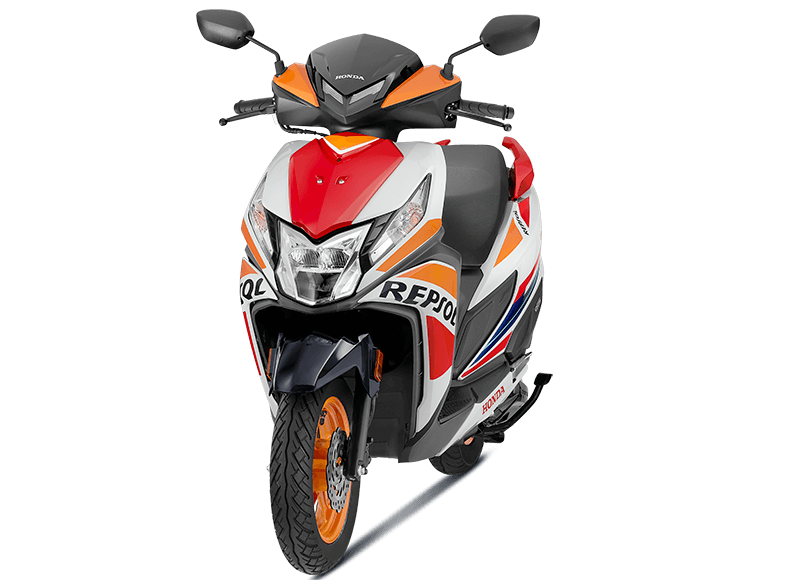

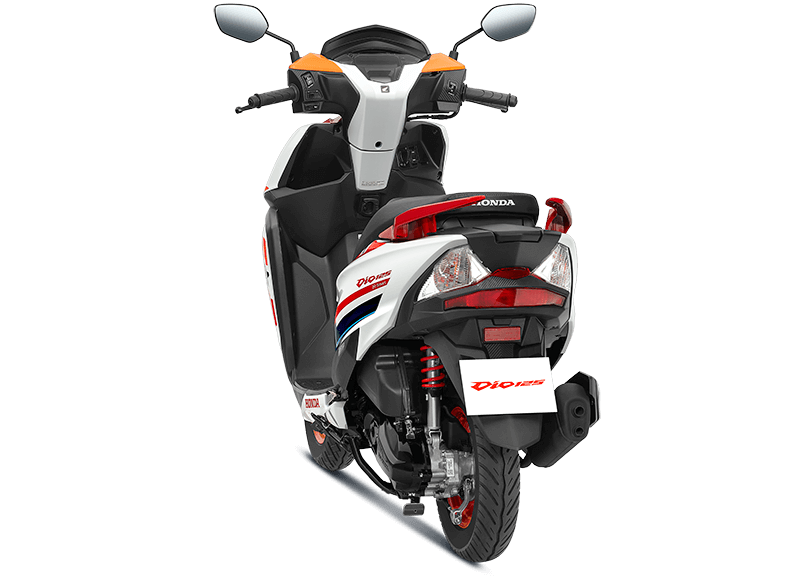

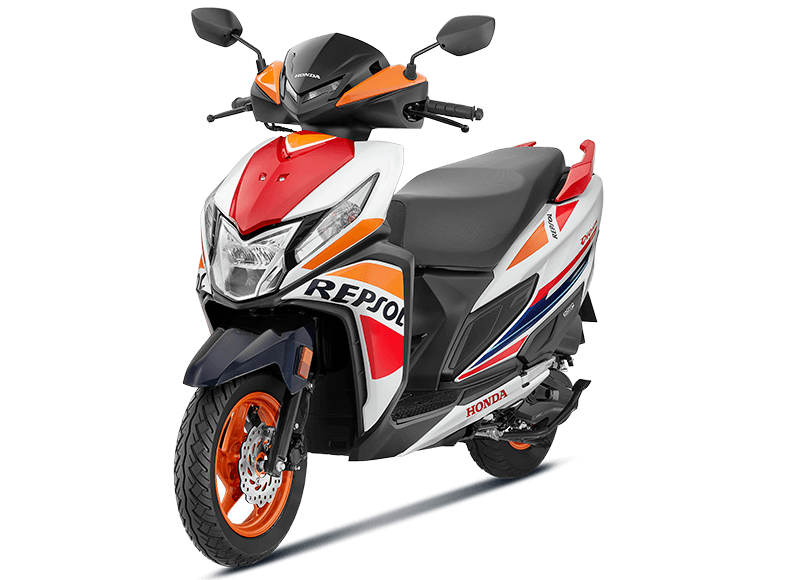

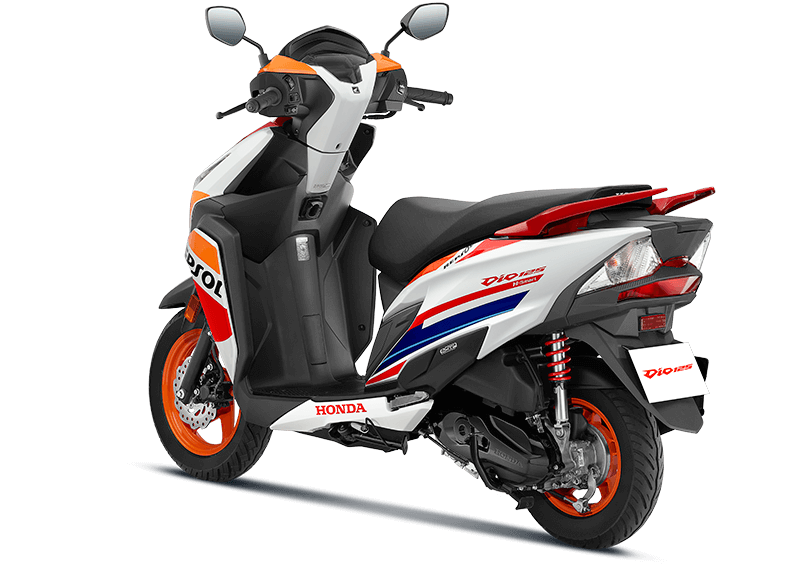

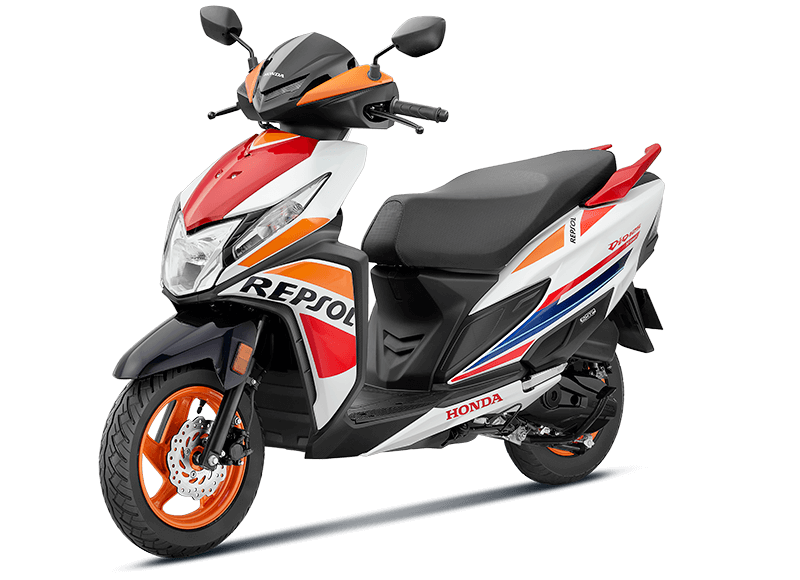

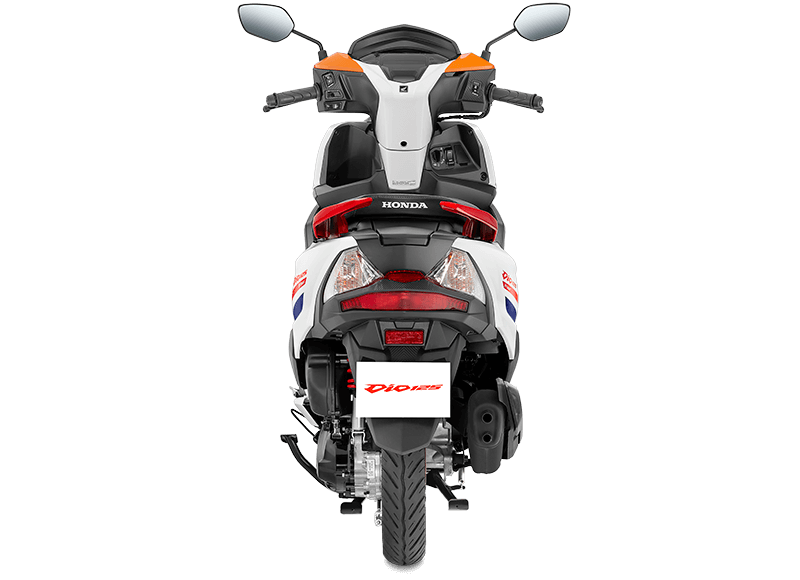

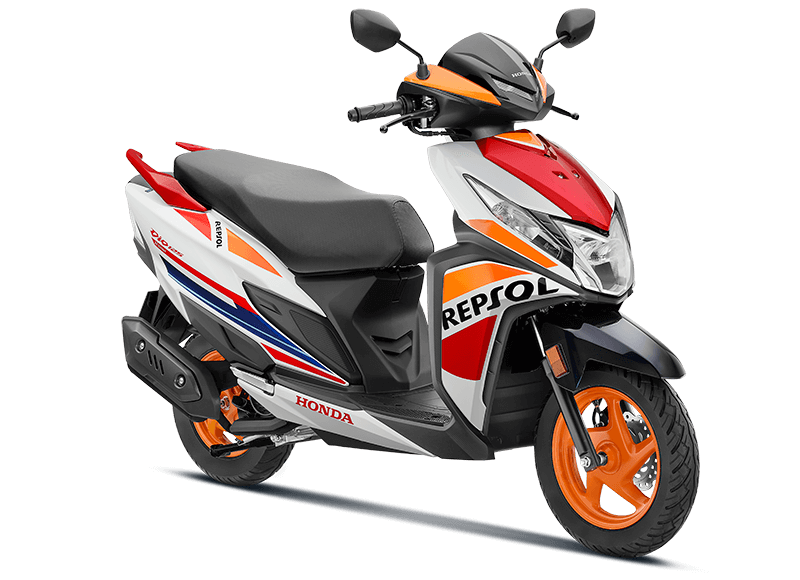

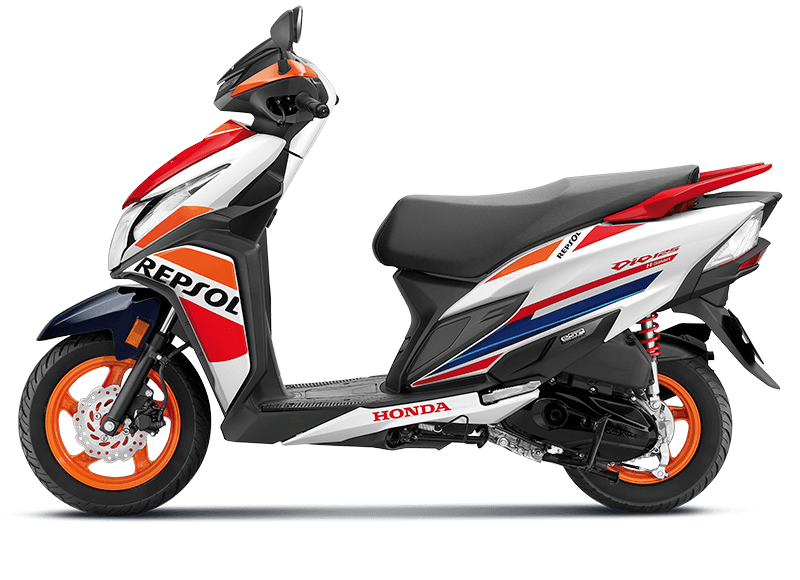

Dio 125 Repsol Edition
| Length | 1830 mm |
| Width | 707 mm |
| Height | 1172 mm |
| Wheel base | 1260 mm |
| Ground clearance | 171 mm |
| Kerb weight | 104 kg |
| Seat height | 708 mm |
| Fuel tank capacity | 5.3 L |
| Type | 4 Stroke, SI Engine |
| Displacement | 123.92 cc |
| Max Engine Output | 6.09 kW @ 6250 rpm |
| Max Torque | 10.4 N-m @ 5000 rpm |
| Fuel system | PGM-FI |
| Bore x Stroke(mm) | 50.000 x 63.113 mm |
| Compression ratio | 10.0:1 |
| Starting method | Self Start |
| Clutch Type | Automatic Centrifugal Clutch Dry Type |
| Tyre Size & Type (Front) | 90/90 - 12 54J |
| Tyre Size & Type (Rear) | 90/100 - 10 53J |

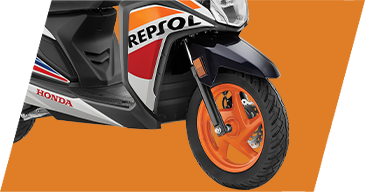

| Brake Type (Front) | Disc |
| Brake Type (Rear) | Drum |
| Frame Type | Underbone |
| Front Suspension | Telescopic |
| Rear Suspension | 3-Step Adjustable Spring Loaded Hydraulic |
| Battery | 12V |
| Head Lamp | 5.0Ah |
